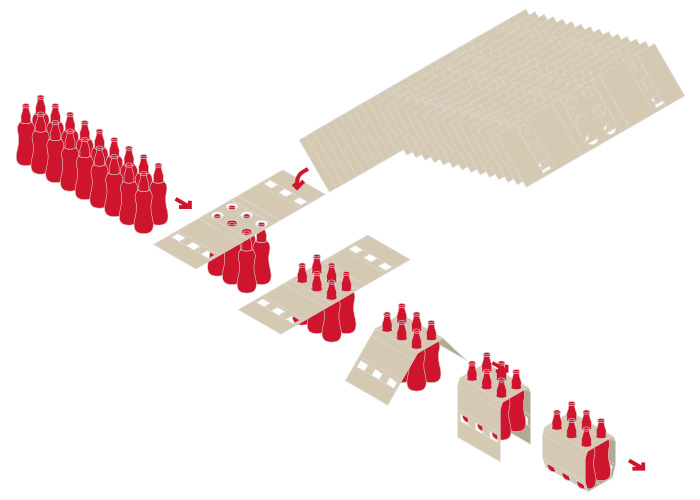

Multipack Junior bundles bottles, jars, tubs and cans in multipacks .
It is suitable for baby food, the canning industry, pet food, and bottled and canned beverages.
Produces up to 70 packs/minute, depending on product and carton quality.

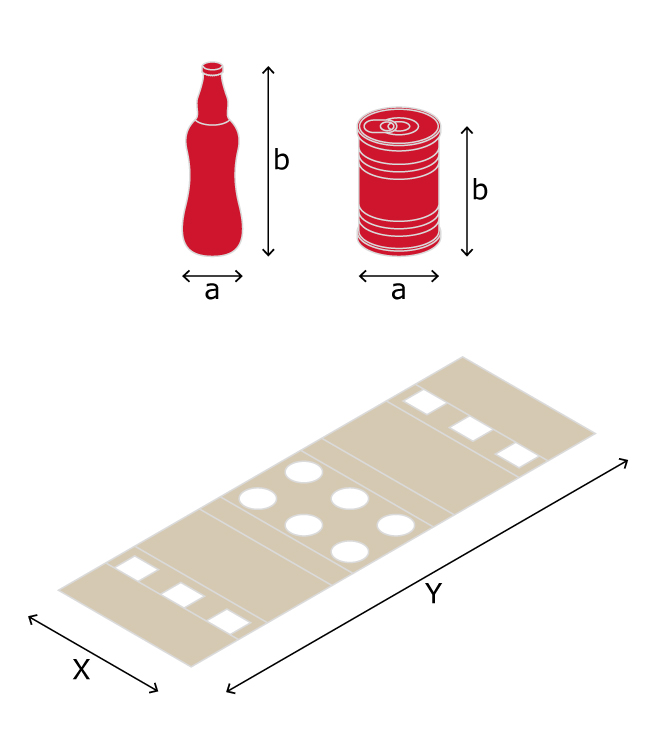

| Bottles | Min | Max |
|---|---|---|
| a (single) | Ø 55 | Ø 100 |
| a (double) | Ø 45 | Ø 70 |
| b (neck covered) | 100 | 300 |
| b (bare neck) | 140 | 300 |
| c | 35 | 85 |
| X | 100 | 275 |
| Y | 200 | 720 |
| Cans/cans | Min | Max |
|---|---|---|
| a (single) | Ø 55 | Ø 100 |
| a (double) | Ø 45 | Ø 70 |
| b | 55 | 300 |
| X | 100 | 275 |
| Y | 200 | 720 |
Different dimensions can be evaluated upon request
Robust structure to ensure long-lasting durability and absence of vibrations during the working cycle
Manual adjustments with handwheels and position indicators
Control for inverted products
Side-loading blank magazine
Mechanical parts with antioxidant treatments
Transparent protections and moving parts equipped with safety microswitches
Electrical and pneumatic control panels are large and easily accessible for maintenance
Latest generation PLC and HMI touch screen to manage all functions
Hot-melt gluing machine from the best brands with 1 gun
Interactive user manual
Stainless steel structure
Customization of components and SW
Tele-assistance
Custom Ral color
Climate control cabinet
Industry 4.0 readiness
