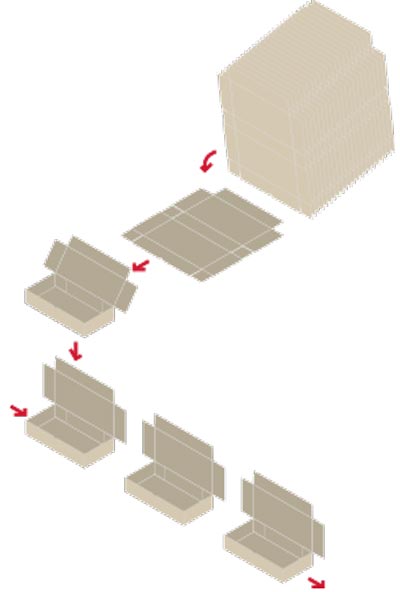

Great speed performance, with small boxes and trays thanks to the setup of up to 4 heads, or very large ranges in single head version, can be completed with accessories for creating trays with honeycombs.
It is suitable for all types of boxes, especially for the Bakery, Confectionary, Dairy, IceCream and Frozen Food sectors because of speed, autonomy, largestorage and easy size changeover that can take place automatically.
It allows a wide range of glue or interlocking boxes and trays, both pressed and corrugated cardboard.
| Effe 22 Min | Effe 22 Max | |
|---|---|---|
a | 100 | 600 |
b | 100 | 250 |
c | 30 | 120 |
X | 150 | 550 |
Y | 150 | 1.100 |
Y-Doppia testa | – | 450 |
Different dimensions can be evaluated upon request
Robust structure to ensure long-lasting durability and absence of vibrations during the working cycle
Manual adjustments with handwheels and position indicators
Magazine capacity of 1,100 mm
Fixed forming tool
Mechanical parts with antioxidant treatments
Transparent protections and moving parts equipped with safety microswitches
Electrical and pneumatic control panels are large and easily accessible for maintenance
Centralized greasing
Latest generation PLC and HMI touch screen to manage all functions
Hot-melt gluer of the best brands with 2 guns (or 4 for the dual-head version)
Interactive user manual
Automatic adjustments
Adjustable handwheel forming tool
Forming tool automatically adjustable on PLC
Stainless steel structure
Component and SW customizations
Tele-assistance
Custom RAL color
Climate control cabinet
Industry 4.0 readiness
